What is Theoretical Density?

Theoretical density represents the maximum achievable density of a material assuming perfect atomic arrangement without voids, pores, or defects. It's calculated from crystallographic data using the formula ρ = (n × M) / (V × NA), where n is atoms per unit cell, M is atomic mass, V is unit cell volume, and NA is Avogadro's number.

This concept differs fundamentally from measured or actual density, which accounts for real-world imperfections that reduce material density below its theoretical maximum.

Understanding the Core Concept

Theoretical density establishes the upper boundary for how tightly matter can pack at the atomic level. When materials scientists design ceramics, metals, or composites, theoretical density serves as their reference point-the ideal they're trying to approach through processing optimization.

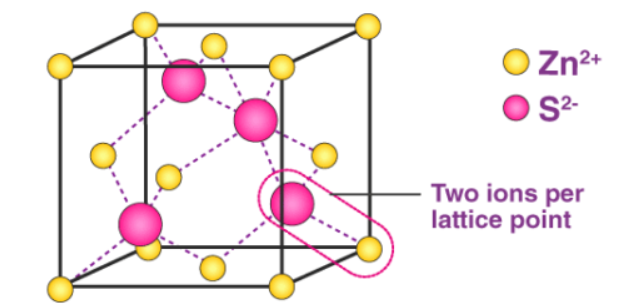

The calculation relies on crystallographic information obtained through X-ray diffraction. By measuring lattice parameters and identifying the crystal structure, researchers determine how many atoms occupy each unit cell and the volume of that cell. These values, combined with atomic weights from the periodic table, yield the theoretical maximum density.

Real materials never reach this theoretical value. Manufacturing processes introduce defects-vacancies where atoms are missing, dislocations where crystal planes misalign, and pores that trap air or other gases. Even the highest-quality materials typically achieve 95-99% of theoretical density, with the gap representing unavoidable imperfections.

Material fabrication techniques directly impact how close products get to theoretical density. Conventional powder metallurgy reaches 80-90% of theoretical values, while advanced processes like metal injection molding (MIM) manufacturing can achieve 95-100% theoretical density through carefully controlled sintering. Hot isostatic pressing pushes even closer, sometimes reaching 99.5% or higher by applying simultaneous heat and pressure to collapse residual porosity.

Calculation Methods and Formulas

The standard formula for theoretical density builds from unit cell parameters. For a crystalline material, theoretical density ρth equals the mass of all atoms in the unit cell divided by the cell volume.

Breaking this down: multiply the number of formula units per cell (Z) by the molecular weight (M), then divide by the product of unit cell volume (Vcell) and Avogadro's number (6.022 × 10²³). The formula ρth = (Z × M) / (Vcell × NA) applies across all crystal systems-cubic, hexagonal, orthorhombic, and others.

Take nickel oxide as an example. The rock salt structure contains four NiO formula units per cubic unit cell. Nickel's atomic mass is 58.71 amu, oxygen's is 16.00 amu, giving a formula mass of 74.71 amu. With a lattice parameter of 4.176 Å, the cell volume is (4.176 × 10⁻⁸ cm)³ = 7.28 × 10⁻²³ cm³. Plugging into the formula: ρth = (4 × 74.71) / (7.28 × 10⁻²³ × 6.022 × 10²³) = 6.81 g/cm³.

For composite materials, theoretical density follows the rule of mixtures. The calculation weighs each component's density by its volume fraction: ρcomposite = Σ(Vi × ρi), where Vi represents the volume fraction of component i with density ρi. This approach works for fiber-reinforced polymers, metal matrix composites, and ceramic blends.

Alloys require special consideration. When elements form solid solutions, calculate theoretical density by summing mass contributions and volume contributions separately. For a binary alloy with weight percentages w1 and w2, the theoretical density becomes: ρalloy = (w1 + w2) / [(w1/ρ1) + (w2/ρ2)].

Modern computational tools simplify these calculations. Software packages like CrystalMaker and VESTA can import crystallographic data files and automatically compute theoretical density from structural information. Density functional theory calculations predict theoretical densities for hypothetical materials before they're synthesized.

Relationship with Porosity Measurement

Porosity quantifies the void space in materials, and theoretical density provides the baseline for these calculations. The most common formula expresses porosity as: P = [1 - (ρmeasured / ρtheoretical)] × 100%.

This relationship makes theoretical density indispensable for quality control. In sintered ceramics, manufacturers target specific density ranges to ensure mechanical properties meet specifications. A ceramic part with 92% of theoretical density contains 8% porosity-information critical for predicting strength, thermal conductivity, and permeability.

The Archimedes method measures actual density by weighing samples dry, saturated, and immersed in water. Comparing this measured value against theoretical density reveals total porosity. For a sample with theoretical density of 5.60 g/cm³ and measured density of 5.32 g/cm³, the porosity equals [1 - (5.32/5.60)] × 100% = 5.0%.

Open versus closed porosity matters for different applications. Helium pycnometry detects only interconnected pores that gas can penetrate, while mercury intrusion porosimetry characterizes pore size distributions. Both methods reference theoretical density to calculate porosity fractions.

In powder metallurgy, relative density-the ratio of measured to theoretical density-serves as a primary process metric. Parts sintered to 95% relative density perform very differently from those at 85%. Higher relative densities generally improve tensile strength, fatigue resistance, and dimensional stability, though extremely high densities can increase brittleness in some materials.

Theoretical Density in MIM Manufacturing

Metal injection molding relies heavily on theoretical density targets throughout the production sequence. The process starts with fine metal powders-typically under 20 microns-mixed with polymer binders to create feedstock. After injection molding forms the green part, debinding removes binders and sintering fuses metal particles.

During sintering, parts shrink approximately 15-20% in each dimension as metal particles bond and pores collapse. Well-controlled MIM processes achieve 96-98.5% of theoretical density, approaching wrought metal properties. This high relative density explains why MIM components can match or exceed the mechanical performance of traditionally machined parts in many applications.

Several factors influence final density in MIM manufacturing. Powder particle size distribution affects packing efficiency-finer powders with multimodal size distributions pack more densely. Sintering temperature and hold time must be optimized for each alloy, as insufficient sintering leaves residual porosity while excessive sintering causes grain growth that weakens parts.

The sintering atmosphere plays a crucial role. Hydrogen atmospheres reduce surface oxides on stainless steel and other alloys, promoting better particle bonding. Vacuum sintering prevents oxidation of reactive metals like titanium. Some materials require argon or nitrogen atmospheres to achieve target densities.

Post-processing can further increase density. Hot isostatic pressing applies high temperature and pressure simultaneously, collapsing remaining porosity to reach 99-100% of theoretical density. This secondary operation benefits aerospace and medical applications where even small amounts of porosity compromise performance or safety.

Material selection in MIM manufacturing considers how theoretical density affects shrinkage calculations. Designers account for volumetric shrinkage during sintering by oversizing mold cavities. A stainless steel part targeting 97% theoretical density requires approximately 16% linear shrinkage compensation, calculated from the cube root of the density ratio.

Applications Across Materials Science

Theoretical density guides materials development across multiple industries. In battery research, electrode materials with high theoretical lithium capacity must maintain structural integrity through charge-discharge cycles. Scientists calculate theoretical densities of novel cathode and anode materials to predict energy storage performance before synthesis.

Ceramic engineers use theoretical density to optimize sintering schedules. By measuring density at intervals during sintering trials, they map how temperature and time affect densification. This data reveals the optimal conditions that maximize density while minimizing grain growth and preventing defects.

The aerospace industry specifies minimum relative densities for safety-critical components. Turbine blades, structural connectors, and landing gear parts often require 98% or higher relative density to ensure fatigue resistance under extreme conditions. Non-destructive testing methods verify that manufactured parts meet these density requirements.

Additive manufacturing has made theoretical density calculations more complex and more important. Laser powder bed fusion and electron beam melting create parts layer by layer, with processing parameters significantly affecting final density. Researchers characterize melt pool dynamics, cooling rates, and layer adhesion to understand how process variables influence the gap between theoretical and achieved density.

Biomaterials present unique density considerations. Bone tissue engineering scaffolds intentionally incorporate controlled porosity-typically 60-80%-to promote cell infiltration and vascularization. Even so, designers calculate theoretical density of the scaffold material itself to determine how much porosity results from the intended architecture versus unintended defects.

Composite materials require theoretical density calculations at multiple scales. The matrix material has its own theoretical density, reinforcing fibers have theirs, and the composite system has a predicted density based on volume fractions. Comparing measured composite density against theoretical predictions reveals manufacturing issues like fiber misalignment, resin-rich regions, or void formation.

Theoretical vs. Actual Density

The discrepancy between theoretical and actual density stems from fundamental materials science principles. Crystals contain point defects-vacancies and interstitials that disrupt perfect atomic arrangement. Even single crystals grown with extreme care have defect concentrations of 10⁻⁶ to 10⁻⁴, enough to measurably reduce density below theoretical values.

Grain boundaries in polycrystalline materials contribute additional density reduction. The atomic arrangements at grain boundaries are less ordered than within grains, creating regions of lower local density. Materials with finer grain sizes have more grain boundary area, which can slightly decrease overall density while improving strength through the Hall-Petch effect.

Processing-induced porosity represents the largest gap between theoretical and actual density for most manufactured materials. Casting processes trap gas bubbles, powder compaction leaves interparticle voids, and rapid cooling creates shrinkage porosity. Each manufacturing method has characteristic porosity distributions that materials scientists characterize and work to minimize.

Temperature and pressure affect density measurements. Most theoretical densities are calculated at standard conditions (25°C), but real materials expand with heating. The coefficient of thermal expansion determines how much density decreases as temperature rises. At elevated service temperatures, the gap between room-temperature theoretical density and actual density widens.

Alloying elements and impurities alter density from ideal values. Solid solution strengthening intentionally adds atoms of different sizes to the crystal lattice, distorting the perfect structure. These distortions affect both lattice parameters and atomic packing, changing theoretical density calculations and creating deviations from pure element values.

Plastic deformation increases dislocation density, and dislocations represent disruptions to perfect crystalline order. Heavily cold-worked metals contain dislocation densities of 10¹⁴ to 10¹⁶ per cm², creating a measurable density deficit compared to annealed material of the same composition.

Measurement and Verification Techniques

X-ray diffraction provides the crystallographic data needed to calculate theoretical density. By analyzing diffraction patterns, researchers determine lattice parameters with precision better than 0.001 Å. This accuracy translates to theoretical density calculations within 0.1% for well-characterized crystal structures.

For experimental verification, the Archimedes method offers the most straightforward density measurement. Samples are weighed in air (mdry), then fully saturated with water and weighed suspended in water (msuspended) and in air while wet (mwet). Density equals mdry / (mwet - msuspended), where water density is assumed to be 1.00 g/cm³ at room temperature.

Helium pycnometry measures skeletal density by using helium gas to probe the solid volume while excluding open porosity. The technique pressurizes a sample chamber containing the material, then connects it to a reference chamber of known volume. Pressure changes follow Boyle's law, revealing the volume occupied by solid material. Dividing sample mass by solid volume gives skeletal density, which should closely match theoretical density if minimal closed porosity exists.

Gas expansion pycnometry extends to other gases besides helium. Nitrogen pycnometry works well for many materials, though helium's small molecular size makes it better at penetrating narrow pores to measure true solid volume. Precision pycnometers report densities to five decimal places, enabling detection of subtle composition or structural variations.

Image analysis quantifies porosity in two and three dimensions. Optical microscopy of polished cross-sections reveals pore area fractions that approximate volume fractions. Scanning electron microscopy provides higher resolution for nanoscale pores. X-ray computed tomography creates 3D reconstructions showing internal pore networks without destroying samples.

Mercury intrusion porosimetry characterizes pore size distributions while measuring density. The technique applies progressively higher pressures to force mercury into smaller pores, recording volume intruded versus pressure. Analysis yields pore size distribution, total pore volume, and bulk density. Comparing bulk density against theoretical density quantifies total porosity including both open and closed pores accessible to mercury.

Advanced Considerations and Limitations

Theoretical density calculations assume perfect crystals at absolute zero with no thermal vibrations. Real crystals at finite temperatures have atoms vibrating around equilibrium positions, creating an effective expansion that reduces density. The Debye temperature characterizes this effect-materials with high Debye temperatures (like diamond) show minimal thermal expansion, while those with low Debye temperatures expand more substantially.

Non-stoichiometry complicates theoretical density for compounds like FeO (wüstite), which exists over a composition range from Fe₀.₈₄O to Fe₀.₉₅O. Excess oxygen creates cation vacancies that reduce density below the value calculated for perfect FeO. Researchers must carefully determine actual composition before calculating theoretical density.

Amorphous materials present fundamental challenges. Without long-range crystalline order, there's no unit cell for traditional calculations. For glasses and amorphous metals, "theoretical density" sometimes refers to the density of the corresponding crystalline phase, though the amorphous structure typically has 1-3% lower density due to less efficient atomic packing.

Anisotropic materials complicate matters further. Crystals with noncubic symmetry have direction-dependent properties, and theoretical density represents an average over all orientations. Highly textured polycrystalline materials where grains orient preferentially can show measured densities varying with sample orientation if porosity or compositional gradients align with texture.

Quantum effects become relevant at nanoscale dimensions. Nanoparticles have higher surface energy than bulk materials, potentially affecting equilibrium atomic positions and thus density. Theoretical frameworks for nanocrystalline materials must account for the substantial fraction of atoms residing at grain boundaries and surfaces.

Computational prediction of theoretical density for novel materials relies on accurate exchange-correlation functionals in density functional theory. Different functionals (LDA, GGA, hybrid functionals) predict slightly different lattice parameters and thus different theoretical densities. Experimental validation remains essential when computational predictions guide materials design.

Frequently Asked Questions

Why is theoretical density important in materials engineering?

Theoretical density establishes the benchmark for evaluating manufacturing quality and optimizing processing conditions. It enables calculation of porosity levels that directly impact mechanical properties, thermal conductivity, and other performance characteristics. Without knowing theoretical density, engineers cannot quantify how effectively processing converts powders or precursors into fully dense components.

Can any material achieve 100% theoretical density?

No material reaches exactly 100% theoretical density under normal conditions. Even single crystals grown with extraordinary care contain point defects at finite temperatures due to thermodynamic equilibrium. Hot isostatic pressing can approach 99.9% theoretical density by collapsing nearly all porosity, but perfect defect-free crystals remain unattainable for bulk materials at temperatures above absolute zero.

How does theoretical density differ between pure metals and alloys?

Pure metals have straightforward theoretical densities calculated from their crystal structure and atomic mass. Alloys require weighted averaging based on composition and must account for whether elements form solid solutions or separate phases. In solid solution alloys, lattice parameters change with composition following Vegard's law or similar relationships, requiring composition-specific theoretical density calculations rather than simple interpolation.

What causes the largest deviation between theoretical and actual density?

Processing-induced porosity typically creates the biggest gap between theoretical and measured density. Sintered materials, castings, and additively manufactured parts contain voids ranging from nanometers to millimeters depending on the process. This porosity fraction can reach 5-20% in conventionally processed materials, far exceeding the sub-percent deviations caused by point defects, grain boundaries, or thermal expansion.
