Die Casting: A Deep Dive into the Process, Types, and Why We Use It

Die casting is one of those manufacturing terms you hear thrown around constantly in the industry. Basically, it is a method used to produce metal parts with really high precision, usually relying on specific die casting alloys. In this post, we are going to take a good look at what this process actually entails, break down the different ways it can be done, and figure out why so many manufacturers prefer it over other options out there.

So, What Exactly Is Die Casting?

When people ask "what is die casting," the simplest answer is that it’s a metal casting technique that relies on metal dies—which are basically just reusable molds—to shape the final product. The core concept is pretty straightforward: you take molten metal, pour or inject it into these steel dies, and then let it sit there until it solidifies. Once the metal has turned back into a solid, you take the part out of the mold, do a little bit of cleanup work, and it’s ready to go.

Mostly, when we talk about die casting, we are talking about non-ferrous metals. We are looking at materials like aluminum, zinc, magnesium, and various alloys of these metals. That said, it is possible to use other metals if they have similar melting points, but the ones mentioned are the most common.

If you think about it, die casting is actually very similar to injection molding. The main difference is just the material. Injection molding usually deals with molten plastic, while die casting deals with molten metal (or sometimes metal powder with binders). Because we are dealing with metal here, the process naturally requires much higher temperatures and significantly higher pressures. That is why the molds (dies) have to be made of high-strength steel; they need to be tough enough to handle that kind of stress. Plastic molds can be made of cheaper stuff, but for metal, you need heavy-duty steel.

Where Do We Use Die Casting?

You see die-cast parts all over the place in various industries. It’s really common for things like:

• Cars and Trucks: Things like engine blocks, the cases for transmissions, and even wheel rims are often die-cast.
• Electronics: If you look at the housing for your laptop, smartphone, or camera, there’s a good chance it was made this way.
• Home Appliances: Simple things like brackets, handles on fridges, or heat sinks.
• Flying Machines: The aerospace industry uses it for various fittings and aircraft parts.
• Factory Gear: Industrial pumps, valve bodies, and heavy-duty enclosures.

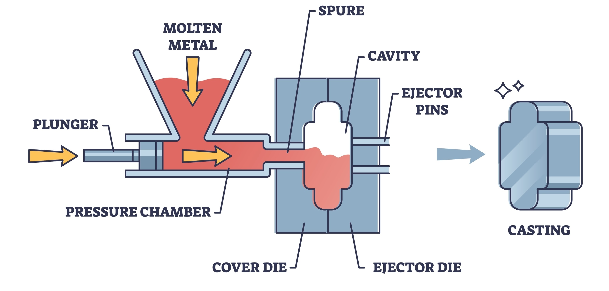

Breaking Down the Die Casting Process

The actual mechanics of the process can change a bit depending on what metal you are using or what the final part needs to do. For example, sometimes the metal is just poured in by gravity, and other times it is shot in there under crazy high pressure.

But generally speaking, if we look at a typical cycle, it usually involves six main steps:

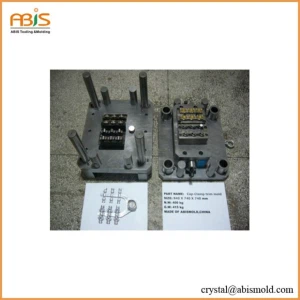

1. Creating the Mould

First things first, you need a mold. In this industry, the mold is a metal die that has a hollow space inside shaped exactly like the part you want to make. Nowadays, engineers use fancy software like CAD and CFD to design these things. They run simulations to check flow rates, temperature, and how the heat will dissipate, just to make sure everything will work before they actually build it.

Once the design is good, toolmakers cut the mold out of steel using CNC machines. This is a super critical step. If you spend the time to make a really high-quality mold, you save yourself a lot of headaches later on, like bad surfaces or parts that don't fill all the way.

2. Getting the Mould Ready

Before you can start casting, you have to prep the mold. This usually involves two halves: a fixed side and a moving side. You have to clean the mold and heat it up. Then, you spray the inside with a lubricant. This lubricant is important because it helps control the temperature, stops the metal from sticking, and makes it easier to pop the part out later. Once it's lubed up, the machine clamps the two halves together really tight.

3. Injecting the Metal

Now comes the main event. You need to fill that mold with molten metal. You can do this with Gravity Die Casting, where you just pour the metal in and let gravity do the work. Or, you can use High-Pressure Die Casting. This is where you inject the metal at pressures anywhere from 100 to 1800 bars. The high-pressure method is usually better if you want thin walls, complex shapes, and a smoother finish because the pressure forces the metal into every tiny crevice.

4. The Cooling Phase

After the metal is inside, you have to wait. The cooling stage is all about letting the metal solidify. You have to control this carefully because if it cools too fast or too slow, you might mess up the internal structure of the metal. You basically just have to wait until it's solid enough to move.

5. Ejection (Removing the Part)

Once the part is solid, the machine unclamps the mold halves. Then, ejector pins (which are built into the mold) push the casting out. This can be done by hand, but usually, machines handle it automatically.

6. Finishing Touches

Even after the part is out, you aren't quite done. You usually have extra metal attached—like the "runners" or "sprues" where the metal entered the mold. You have to trim those off. Usually, that scrap metal just gets thrown back in the furnace to be melted down again. Sometimes the part needs sanding or machining to look perfect, but often it’s pretty good right out of the mold.

The Different Types: Hot vs. Cold Chamber

There are a few ways to do die casting, but the two big ones you really need to know about are Hot Chamber and Cold Chamber.

Hot Chamber Die Casting

In this setup, the furnace is actually built inside the machine. It’s called "hot chamber" because the metal is kept hot right there in the machine. There is a "gooseneck" system that feeds the metal into the die. Because the metal is already right there, melted and ready, this process is really fast. Cycles can be super quick, making it great for mass production. The catch: You can't get it super hot, or you'll damage the machine components. So, this is mostly used for metals with lower melting points like zinc, lead, or magnesium.

Cold Chamber Die Casting

This is for the metals that melt at much higher temperatures, like aluminum or copper. You can’t melt these inside the casting machine because it would wreck the injection mechanism. Instead, you melt the metal in a separate furnace nearby. Then, a worker (or a robot arm) uses a ladle to scoop up the molten metal and pour it into the machine's injection cylinder (the "cold chamber"). Then a hydraulic piston rams it into the die. It’s a slower process than the hot chamber method, but it’s necessary if you want parts made of stronger materials like aluminum alloys.

Why Do Manufacturers Like Die Casting? (The Benefits)

Die casting isn't new, but it’s still one of the favorites in the manufacturing world. Here is why people stick with it:

• Complex Shapes are Easy: You can make really intricate parts with this method. Because of the high pressure, the metal can fill very thin walls that other casting methods just can't handle.
• Great for Mass Production: Once you have the mold, you can pump out parts incredibly fast. It’s highly efficient for making thousands or millions of the same item.
• Modern and High-Tech: It works well with automation, robots, and modern design software. It fits right into a high-tech factory.
• Cheap in the Long Run: Sure, the machine and the mold cost a lot upfront. But the cost per part is super low when you are making high volumes. It’s one of the cheapest ways to operate if you are making a lot of stuff.
• Smooth Finish: The parts usually come out looking really good. You often don't need to do much polishing or grinding, which saves time and money.

It’s Not Perfect (The Limitations)

Of course, die casting has its downsides too. It’s important to be realistic about what it can’t do.

• Expensive to Start: The biggest hurdle is the initial cost. Making the mold (the tooling) is very expensive. If you only need to make 50 parts, do not use die casting. It’s only worth it if you are making thousands.
• Bubbles and Porosity: Because you are shooting metal in so fast, you can get turbulence, which traps air bubbles inside the metal. Engineers try to fix this with good mold design, but it’s always a risk.
• Size Limits: You can’t make massive parts with this. There is a limit to how big the dies and the machines can get. If you need a giant metal pipe, you’ll probably need a different method, like centrifugal casting.

Wrapping It Up

To sum it all up, die casting is essentially a powerhouse of modern manufacturing. It allows us to create complex, lightweight, and strong metal parts without too much hassle. It beats out older methods like sand casting when it comes to speed and surface finish, which is why it's the go-to for things like aluminum car parts.

While the high startup cost and size limits mean it’s not for everyone, for mass production, it is hard to beat. As technology gets better, with more automation and better simulations, die casting is only going to get more efficient.
