Insert Molding Technology

Insert molding represents one of the most sophisticated manufacturing processes in modern industrial production, particularly within the automotive and medical device sectors. This advanced technique involves placing pre-formed components—typically metal inserts—into a mold cavity before injecting thermoplastic material around them, creating a single integrated component with enhanced structural and functional properties.



The insert mold technology has revolutionized how manufacturers approach complex part design, enabling the creation of hybrid components that combine the advantages of multiple materials into a unified assembly.

Inserting Mold



The fundamental principle behind insert molding lies in the molecular adhesion between the molten plastic and the insert material during the injection process. When properly executed, this creates a permanent bond that eliminates the need for secondary assembly operations, reduces production costs, and enhances product reliability.



In automotive applications, insert molds enable the production of everything from sensor housings to structural brackets, while in medical devices, they facilitate the creation of surgical instruments and implantable components with unprecedented precision.



Materials Science and Selection Criteria



Thermoplastic Materials





The selection of appropriate thermoplastic materials for insert mold applications requires careful consideration of multiple factors including chemical compatibility, thermal properties, and mechanical requirements. In automotive applications, engineering thermoplastics such as polyamide (PA), polybutylene terephthalate (PBT), and polyphenylene sulfide (PPS) dominate due to their excellent mechanical properties and chemical resistance.



These materials must withstand extreme temperature variations, exposure to automotive fluids, and continuous mechanical stress throughout the vehicle's operational lifetime.





Polyamide 66 reinforced with glass fiber represents a particularly common choice for automotive insert mold applications, offering tensile strengths exceeding 200 MPa and heat deflection temperatures above 250°C. The glass fiber content, typically ranging from 15% to 50% by weight, significantly enhances dimensional stability and reduces thermal expansion coefficients, critical factors when molding around metal inserts.



Additionally, flame-retardant grades meeting UL94 V-0 specifications are frequently specified for electrical and electronic components within the vehicle.



For medical device applications, biocompatible materials take precedence. Polycarbonate (PC), polyetheretherketone (PEEK), and medical-grade polyethylene (PE) are extensively utilized due to their biocompatibility, sterilization resistance, and regulatory compliance.

Thermoplastic Materials

Common Insert Molding Materials

 Polyamide (PA) 66 with 15-50% glass fiber

Polybutylene terephthalate (PBT)

Polyphenylene sulfide (PPS)

Medical-grade Polyetheretherketone (PEEK)

Biocompatible Polycarbonate (PC)



PEEK, in particular, has gained prominence in implantable devices due to its exceptional chemical resistance, radiolucency, and elastic modulus similar to human bone. The insert mold process allows these materials to be combined with titanium or stainless steel inserts, creating hybrid components suitable for long-term implantation.



Insert Materials and Surface Treatments

Metal inserts used in insert mold processes typically consist of brass, stainless steel, aluminum alloys, or specialized materials like titanium for medical applications. The surface preparation of these inserts critically influences the bond strength and overall component integrity.



Mechanical surface treatments including knurling, threading, and undercut features provide mechanical interlocking with the overmolded plastic. Chemical treatments such as chromate conversion coating for aluminum or passivation for stainless steel enhance corrosion resistance and promote adhesion.



Advanced surface modification techniques have emerged to optimize insert-plastic interfaces. Plasma treatment, for instance, increases surface energy and creates functional groups that enhance chemical bonding. In medical device manufacturing, these treatments must comply with stringent biocompatibility standards while maintaining their effectiveness throughout the product's lifecycle.

Insert Materials and Surface Treatments
First 123456 Last

Insert Mold Design Principles and Engineering Considerations



Cavity and Core Design



The design of insert mold cavities requires sophisticated engineering to ensure proper insert positioning, adequate plastic flow, and optimal cooling. The cavity must incorporate precise locating features that maintain insert position during the high-pressure injection phase while allowing for thermal expansion differences. Typical positioning methods include mechanical pins, magnetic systems for ferrous inserts, or vacuum-assisted holding mechanisms for non-magnetic materials.

 Gate Design Considerations



 Submarine gates eliminate surface marks on visible components

Hot runner systems reduce material waste and cycle time

Valve gates provide precise control over filling phases

Gate positioning must ensure balanced flow around inserts

 Cooling System Design



Conformal cooling channels follow cavity contours

Additive manufacturing enables complex cooling geometries

CFD simulations optimize cooling efficiency

Uniform cooling reduces warpage and cycle time



Venting and Pressure Considerations



Proper venting in insert mold design prevents air entrapment that could lead to burn marks, incomplete filling, or weak bonds between insert and plastic. Venting depths typically range from 0.015 to 0.025 mm for most thermoplastics, positioned strategically at the last-to-fill areas identified through mold flow analysis. Vacuum-assisted venting systems enhance air evacuation in complex geometries, particularly beneficial when molding around intricate insert shapes.



Injection pressure profiles must be carefully calibrated to prevent insert displacement while ensuring complete cavity filling. Multi-stage injection profiles, incorporating velocity-to-pressure switchover points optimized through scientific molding principles, achieve consistent part quality. Cavity pressure sensors provide real-time feedback, enabling adaptive process control that compensates for material viscosity variations and ensures repeatable insert encapsulation.



Production Process and Manufacturing Workflow



Production Process and Manufacturing Workflow

Modern insert molding production line with automated insert handling and precision injection molding



Pre-Production Preparation



The insert mold production process begins with meticulous preparation of both inserts and molding equipment. Insert inspection protocols verify dimensional conformity, surface condition, and cleanliness. Automated vision systems equipped with high-resolution cameras and artificial intelligence algorithms detect surface defects, contamination, or dimensional variations that could compromise product quality. Statistical process control (SPC) methodologies track insert quality trends, enabling proactive intervention before defects propagate through production.



Insert Preheating Guidelines



Insert preheating represents a critical process parameter, particularly for thick metal inserts that could otherwise create thermal gradients leading to residual stress or poor adhesion.

Infrared Heating

Precise temperature control for various insert sizes

Induction Heating

Efficient heating for ferrous metal inserts

Temperature Range

80°C to 150°C depending on material and size





Injection Molding Parameters

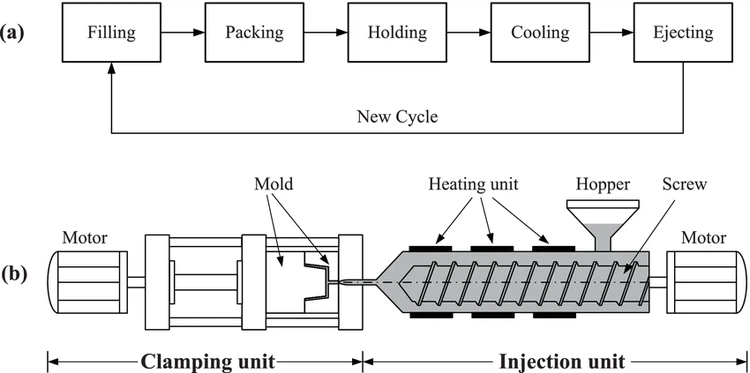

The optimization of injection molding parameters for insert mold applications requires systematic experimentation and validation. Injection velocity profiles must balance the need for rapid cavity filling with the requirement to prevent insert movement. Typical injection velocities range from 50 to 200 mm/s, with multi-stage profiles that reduce velocity as the flow front approaches the insert.



Holding pressure and time significantly influence the integrity of the insert-plastic interface. Insufficient holding pressure results in sink marks and poor insert encapsulation, while excessive pressure may cause insert deformation or mold damage.



Melt temperature control ensures consistent material properties and adequate flow characteristics. For engineering thermoplastics used in automotive applications, melt temperatures often exceed 280°C, requiring precise barrel temperature profiling and residence time management.

Injection Molding Parameters




Quality Control and Inspection Methods



Quality assurance in insert mold production encompasses multiple inspection methodologies to verify both dimensional accuracy and functional performance. Coordinate measuring machines (CMM) equipped with non-contact laser scanning capabilities measure critical dimensions without risking damage to delicate features. For medical device components, these measurements must demonstrate compliance with tolerances often tighter than ±0.025 mm.

Non-Destructive Testing

Non-Destructive Testing

Ultrasonic testing detects voids and delamination. X-ray CT provides 3D visualization of internal structures and bond quality without damaging components.

Destructive Testing

Destructive Testing

Tensile, compression, and torque-to-failure tests validate mechanical properties. Pull-out tests specifically evaluate insert retention forces and bond strength.

Environmental Testing

Environmental Testing

Thermal cycling, chemical exposure, and accelerated aging confirm long-term reliability under application-specific conditions.



Advanced Applications in Automotive Industry



Electronic Control Unit Housings
Electronic Control Unit Housings

The automotive industry extensively utilizes insert mold technology for manufacturing electronic control unit (ECU) housings that protect sensitive electronics while providing electromagnetic interference (EMI) shielding. These complex assemblies incorporate multiple brass or stainless steel threaded inserts for mounting, copper alloy pins for electrical connections, and aluminum heat sinks for thermal management.



The insert mold process enables the integration of these diverse components into a single, sealed housing that meets IP67 waterproofing standards.



The design of automotive ECU housings using insert mold technology must address multiple engineering challenges simultaneously, including thermal management, EMI shielding, and environmental resistance.



Sensor Integration and Packaging



Modern vehicles incorporate numerous sensors for engine management, safety systems, and autonomous driving capabilities. Insert molding provides robust packaging solutions that protect delicate sensor elements while ensuring accurate signal transmission. Pressure sensors for fuel injection systems, accelerometers for airbag deployment, and position sensors for throttle control all benefit from insert mold manufacturing techniques.



Key Benefits of Insert Molding for Automotive Sensors

 Environmental Protection

Hermetic sealing against moisture, dust, and automotive fluids

 Dimensional Stability

Precise positioning of sensing elements for accurate measurements

 Electrical Performance

Optimized signal paths with minimal interference

 Thermal Management

Controlled heat dissipation to maintain sensor accuracy





Medical Device Manufacturing Excellence



Surgical Instrument Development



Insert mold technology has transformed surgical instrument manufacturing by enabling the creation of ergonomic, autoclavable tools with enhanced functionality. Surgical forceps, retractors, and specialized instrumentation incorporate stainless steel or titanium functional elements overmolded with medical-grade thermoplastics. This combination provides superior grip, reduced hand fatigue, and color-coding capabilities for instrument identification while maintaining the durability required for repeated sterilization cycles.



Surgical Instrument Development

Design Considerations for Medical Instrument



 Human Factors Engineering: Ergonomic designs that reduce surgeon fatigue during long procedures



Infection Control: Smooth, crevice-free surfaces that prevent bacterial colonization



Sterilization Resistance: Materials that withstand repeated autoclaving at 134°C



Tactile Feedback: Optimized surface textures for secure grip even with surgical gloves



Implantable Device Components



The most demanding applications for insert mold technology exist in implantable medical devices where biocompatibility, reliability, and longevity are paramount. Cardiac pacemaker headers, neurostimulator connectors, and orthopedic implant components utilize insert molding to create hermetically sealed assemblies that function reliably within the human body for decades. These devices typically combine titanium or platinum-iridium inserts with specialized biocompatible polymers like PEEK or medical-grade silicone.



 Regulatory and Quality Requirements



Manufacturing implantable devices through insert mold processes requires extraordinary attention to cleanliness and process control. Every aspect of production must comply with stringent regulatory standards:



Cleanroom Environment

Class 10,000 facilities prevent particulate contamination of implantable components

Regulatory Compliance

FDA 21 CFR Part 820 and ISO 13485 quality management system requirements



Process Validation

Comprehensive documentation and verification of all manufacturing steps





 Regulatory And Quality Requirements

Orthopedic implant component utilizing insert molding to combine titanium and PEEK materials



Process Optimization and Troubleshooting



Common Defects and Solutions



Defect Type Common Causes Solutions
Insert Displacement Inadequate fixturing, excessive injection velocity, unbalanced flow Improve fixturing, optimize injection profile, balance gate placement
Delamination Contaminated insert surfaces, material incompatibility, residual stress Enhance cleaning protocols, optimize surface treatments, adjust cooling
Incomplete Encapsulation Insufficient pressure, poor venting, inadequate material flow Adjust pressure profile, improve venting, optimize melt temperature
Warpage Uneven cooling, material shrinkage differences, unbalanced design Optimize cooling system, adjust process parameters, modify part design



Advanced Simulation and Modeling


Modern insert mold design relies heavily on computer-aided engineering tools that predict and optimize process outcomes. Moldflow analysis software simulates plastic flow around inserts, predicting potential issues like weld lines, air traps, and differential shrinkage. These simulations incorporate insert thermal properties, enabling accurate prediction of cooling times and temperature distributions that affect part quality and cycle time.



Structural simulations using FEA evaluate part performance under operational loads, considering the composite behavior of insert-plastic assemblies. These analyses account for material anisotropy introduced by fiber orientation, temperature-dependent material properties, and long-term creep behavior.

Advanced Simulation And Modeling



Innovations Technology



Industry 4.0 Integration



The evolution of insert mold manufacturing increasingly incorporates Industry 4.0 concepts including real-time process monitoring, predictive maintenance, and adaptive control systems. Internet of Things (IoT) sensors embedded within molds track temperature, pressure, and cycle parameters, transmitting data to cloud-based analytics platforms. Machine learning algorithms identify patterns correlating process variables with product quality, enabling predictive quality control and automatic process optimization.



Digital Transformation In Insert Molding

Digital Transformation in Insert Molding



 Cloud-Based Analytics: Centralized data collection and analysis across production facilities



 Digital Twins: Virtual replicas of production systems for simulation-based optimization



 AR Interfaces: Augmented reality guidance for setup and maintenance procedures



 Adaptive Control: Real-time process adjustments based on sensor feedback



Sustainable Manufacturing Practices



Environmental sustainability drives innovation in insert mold technology toward reduced energy consumption, material waste minimization, and end-of-life recyclability. Bio-based thermoplastics derived from renewable resources offer alternatives to petroleum-based materials while maintaining necessary performance characteristics. Design for disassembly principles facilitate insert recovery and material recycling at product end-of-life, supporting circular economy objectives.







Eco-Friendly Materials

Bio-based polymers and recycled content materials with comparable performance to traditional plastics



Energy Efficiency

Servo-electric molding machines and optimized process cycles reducing energy consumption



Circular Economy

Design for recyclability and insert recovery systems enabling material reuse





Innovative of Insert Mold Technology


Insert mold technology stands as a cornerstone of modern manufacturing in both automotive and medical device industries, enabling the creation of complex, high-performance components that would be impossible or economically unfeasible through alternative manufacturing methods. The successful implementation of insert molding requires deep understanding of materials science, mold design principles, process control, and quality assurance methodologies.



As industries continue advancing toward greater complexity and performance demands, insert mold processes will evolve correspondingly, incorporating new materials, advanced simulation capabilities, and intelligent manufacturing systems.



The convergence of traditional manufacturing expertise with digital technologies promises continued innovation in insert mold applications. From autonomous vehicle sensors to next-generation medical implants, the ability to combine diverse materials into integrated assemblies through insert molding will remain critical to technological advancement.



Manufacturers who master these complex processes, maintaining rigorous quality standards while embracing technological innovation, will lead their industries in delivering products that enhance human mobility, health, and quality of life.

Future of Insert Mold Technology



The future of insert mold technology lies not merely in incremental improvements but in revolutionary approaches that challenge conventional limitations. As additive manufacturing technologies mature, hybrid processes combining 3D-printed inserts with traditional overmolding open new design possibilities. Smart materials with self-healing properties or shape-memory capabilities could create insert-molded components with unprecedented functionality. The continued evolution of this manufacturing technology will undoubtedly play a crucial role in addressing society's most pressing challenges, from sustainable transportation to accessible healthcare, making insert mold expertise increasingly valuable in the global manufacturing landscape.
