Understanding Metal Injection Molding
The Fusion of Plastic Molding and Powder Metallurgy
Metal Injection Molding (MIM) is a advanced manufacturing process that combines the design flexibility of plastic injection molding with the material properties of metal. This technology enables the production of complex, high-precision components that meet the stringent requirements of modern electronics.
In the rapidly evolving world of cnc electronics, where miniaturization and performance are paramount, MIM has emerged as a critical manufacturing solution. It bridges the gap between traditional manufacturing methods and the demands of next-generation electronic devices.
The process involves mixing fine metal powders with a binder material to create a feedstock, which is then injected into molds to form complex shapes. After molding, the binder is removed, and the part is sintered at high temperatures to achieve full density and metal properties.
This combination of processes allows for the creation of intricate geometries with tight tolerances, making it ideal for the complex components found in today's electronic devices. From smartphones to medical electronics, MIM technology is driving innovation in cnc electronics manufacturing.
MIM vs. Traditional Manufacturing Methods
| Manufacturing Method | Complexity | Material Efficiency | Cost (High Volume) | Tolerance |
|---|---|---|---|---|
| Metal Injection Molding | Very High | 95-98% | Low | ±0.3% |
| CNC Machining | Medium | 40-60% | High | ±0.01% |
| Stamping | Low | 70-85% | Low | ±0.1% |
| Investment Casting | High | 60-75% | Medium | ±0.5% |
Table comparing Metal Injection Molding with traditional manufacturing methods commonly used in cnc electronics production.
The MIM Process Explained
A detailed look at the steps involved in Metal Injection Molding, a critical manufacturing process in modern cnc electronics production.
Feedstock Preparation
The process begins with the creation of a homogeneous mixture of fine metal powder (typically 5-20 microns) and a thermoplastic binder system. This mixture, known as feedstock, has the consistency of pelletized plastic, allowing it to be processed using standard injection molding equipment. The precise formulation of this mixture is critical for both the molding process and the final properties of the component, especially in demanding cnc electronics applications.
Injection Molding
The feedstock is heated to a molten state and injected into precision molds under high pressure. This step allows for the creation of complex, net-shape components with intricate details that would be difficult or impossible to achieve with other manufacturing methods. In cnc electronics production, this capability is particularly valuable for creating small, complex connectors and structural components with tight tolerances and fine features.
Debinding
After molding, the "green part" contains approximately 15-25% binder by volume. The debinding process removes most of this binder material through a combination of thermal, solvent, or catalytic methods. This critical step must be carefully controlled to prevent cracking or distortion of the part. For cnc electronics components, precise debinding ensures dimensional stability and prepares the part for the final sintering process.
Sintering
The final step involves heating the "brown part" (after debinding) in a controlled atmosphere furnace to temperatures approaching the melting point of the metal. During sintering, the metal particles bond together, and the part shrinks (typically 15-20%) to achieve near-full density. This process develops the final mechanical properties of the component. For cnc electronics applications, sintering parameters are carefully optimized to ensure the desired electrical conductivity, strength, and dimensional accuracy.
Secondary Operations
Depending on specific requirements, secondary operations may be performed after sintering. These can include CNC machining for critical surfaces, heat treatment to enhance mechanical properties, surface finishing (plating, coating), or assembly. In cnc electronics manufacturing, these operations often focus on achieving precise electrical contact points or enhancing corrosion resistance in harsh environments.
Materials Used in MIM for Electronics
A diverse range of metal alloys can be processed using MIM technology, each offering unique properties suitable for different cnc electronics applications.
Stainless Steels
316L, 17-4 PH, and 440C stainless steels are widely used in cnc electronics for their excellent corrosion resistance, strength, and moderate electrical conductivity. These alloys are ideal for connectors, shielding components, and structural parts.
Low Alloy Steels
Alloys such as 4605 and 8620 offer an excellent combination of strength, toughness, and cost-effectiveness for cnc electronics applications. They are often used for structural components and precision mechanical parts in electronic devices.
Titanium Alloys
Titanium and its alloys provide an exceptional strength-to-weight ratio and excellent corrosion resistance, making them ideal for high-end cnc electronics applications where weight reduction is critical, such as aerospace electronics and portable devices.
Copper & Copper Alloys
Copper and its alloys (brass, bronze) are prized in cnc electronics for their high electrical and thermal conductivity. These materials are essential for heat sinks, electrical contacts, and connectors where efficient current flow or heat dissipation is required.
Nickel Alloys
Nickel alloys such as Kovar® and Inconel® offer excellent thermal expansion matching with ceramics and glasses, making them valuable in cnc electronics for hermetic seals and high-temperature applications like sensors and aerospace electronics.
Precious Metals
Gold, silver, and platinum group metals are used in high-end cnc electronics applications where maximum conductivity, corrosion resistance, and reliability are required. These include connectors in medical devices, aerospace electronics, and high-frequency communication equipment.
Material Property Comparison for Electronics Applications
Comparative analysis of key material properties important in cnc electronics applications. Higher values indicate better performance.
MIM Applications in Electronics
Metal Injection Molding enables innovative designs and cost-effective production across a wide range of cnc electronics applications.
Consumer Electronics
In the competitive world of consumer electronics, MIM technology enables the production of small, complex components with exceptional precision – a requirement that perfectly aligns with the demands of modern cnc electronics manufacturing.
Smartphone camera components, including lens mounts and structural parts that require high precision and dimensional stability
Wearable device components such as watch cases, bracelets, and internal structural parts that balance strength with lightweight design
Connector systems and ports that require precise mating surfaces and electrical conductivity, often produced using copper-based MIM materials
Heat management components that dissipate thermal energy in compact devices, leveraging MIM's ability to create complex geometries for efficient heat transfer
Medical Electronics
Medical electronics demand the highest levels of precision, biocompatibility, and reliability – areas where MIM excels. When combined with cnc electronics manufacturing techniques, MIM produces components that meet the stringent requirements of medical applications.
Components for diagnostic equipment, including sensor housings and precision mechanical parts that require consistent performance
Implantable device components made from biocompatible materials like titanium, where complex shapes and precise dimensions are critical
Surgical instrument components that require a combination of strength, corrosion resistance, and intricate features for precise operation
Patient monitoring devices with MIM connectors and structural parts that ensure reliable performance in clinical environments
Automotive Electronics
The automotive industry increasingly relies on advanced electronics for safety, efficiency, and connectivity. MIM technology, integrated with cnc electronics manufacturing, provides durable, high-performance components that withstand harsh automotive environments.
Sensor components for advanced driver assistance systems (ADAS), including radar and LiDAR systems that require precise positioning and environmental resistance
Connectors and terminals for automotive electrical systems that provide reliable performance under temperature extremes and vibration
Components for infotainment systems and dashboard electronics that balance aesthetic appeal with functional performance
Battery management system components for electric vehicles, where precision and reliability are critical for safety and performance
Aerospace & Defense Electronics
Aerospace and defense electronics operate in extreme conditions, demanding components that offer exceptional performance, reliability, and weight efficiency. MIM technology, when paired with advanced cnc electronics manufacturing, meets these rigorous requirements.

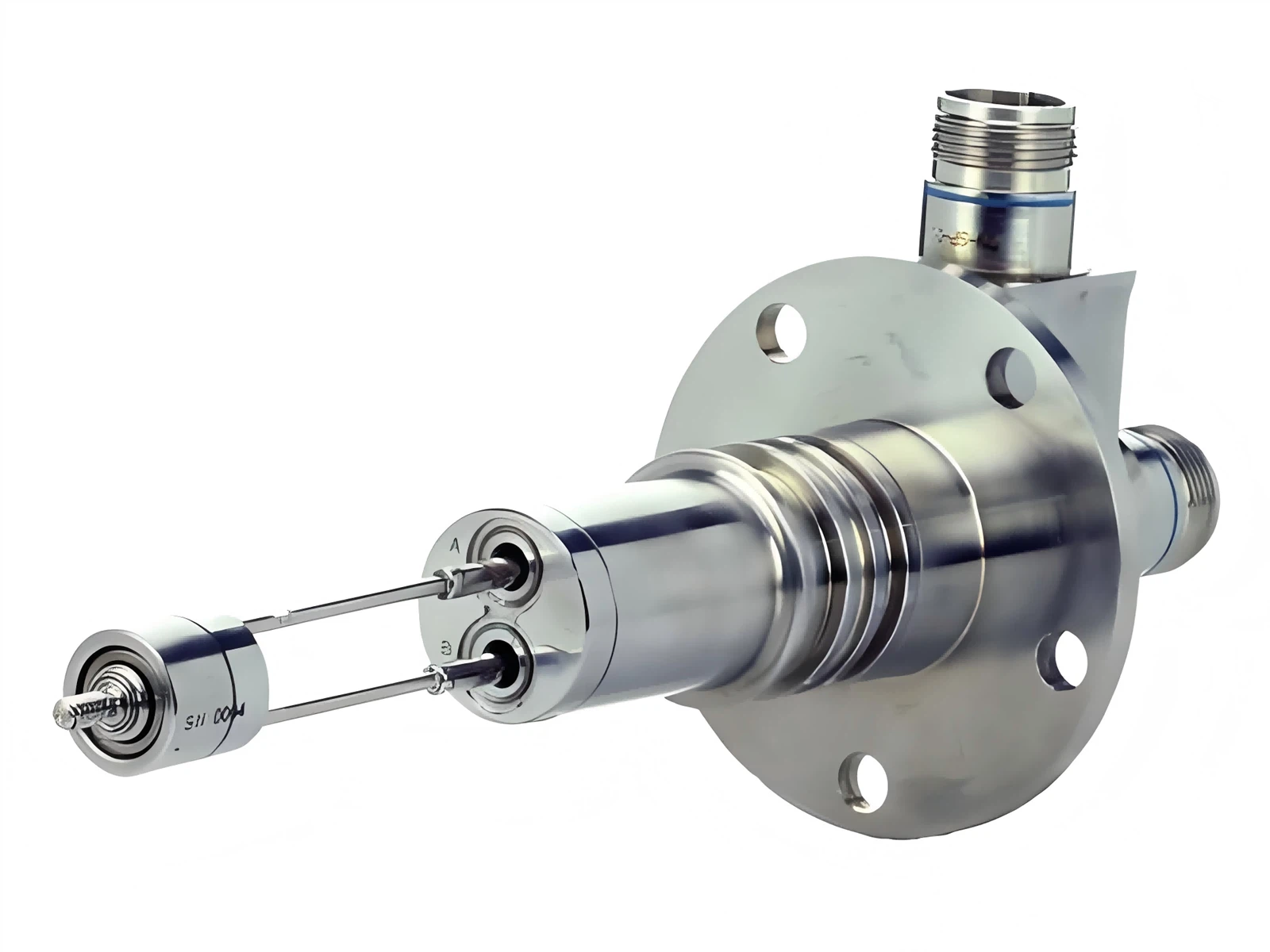

Avionics components that require lightweight construction, high strength, and resistance to temperature extremes and vibration
Communication system components, including connectors and waveguide parts that ensure reliable signal transmission in demanding environments
Sensor housings and precision components for guidance systems, where dimensional stability and reliability are mission-critical
Miniaturized components for unmanned systems and portable defense electronics, where size and weight reduction are paramount
Advantages of MIM in Electronics Manufacturing
Metal Injection Molding offers numerous benefits that make it an ideal solution for modern cnc electronics production.
Complex Geometry Capability
MIM can produce intricate shapes with undercuts, thin walls, and complex internal features that would be difficult or impossible to achieve with traditional manufacturing methods. This capability is particularly valuable in cnc electronics where miniaturization and functionality are critical.
Material Efficiency
With material utilization rates of 95-98%, MIM significantly reduces waste compared to subtractive manufacturing processes like CNC machining, which often waste 50% or more of the raw material. This efficiency is both cost-effective and environmentally beneficial in cnc electronics production.
High Production Rates
MIM leverages injection molding technology to produce high volumes of complex components efficiently. This makes it ideal for mass production in cnc electronics, where consistent quality and high throughput are essential for meeting market demands.
Tight Tolerances
MIM can achieve dimensional tolerances of ±0.3% or better, which is sufficient for most electronic components. When tighter tolerances are required for critical features, MIM parts can be finish-machined, combining the best aspects of MIM and cnc electronics manufacturing.
Cost Efficiency
For complex parts produced in medium to high volumes, MIM typically offers significant cost advantages over CNC machining, investment casting, and other manufacturing processes used in cnc electronics. The reduction in material waste and machining operations contributes to lower overall costs.
Material Versatility
MIM supports a wide range of metal alloys, including stainless steels, titanium, copper, and precious metals, allowing manufacturers to select the optimal material for each cnc electronics application based on required properties like conductivity, strength, and corrosion resistance.
Part Consolidation
MIM enables the integration of multiple components into a single part, reducing assembly operations and improving reliability in cnc electronics products. This consolidation can significantly reduce production time and costs while enhancing performance.
Excellent Mechanical Properties
Sintered MIM parts achieve full density and mechanical properties comparable to wrought materials, making them suitable for demanding cnc electronics applications where strength, fatigue resistance, and other mechanical properties are critical.
Environmental Benefits
MIM's high material efficiency, reduced energy consumption compared to many traditional processes, and ability to use recycled materials make it an environmentally friendly manufacturing option for sustainable cnc electronics production.
Cost Comparison: MIM vs. Traditional Manufacturing
Relative production costs for a complex electronic component across different manufacturing methods, showing MIM's cost advantage for medium to high volume production in cnc electronics.
MIM Design Considerations for Electronics
Optimal design practices to maximize the benefits of Metal Injection Molding in cnc electronics applications.
Key Design Parameters
Wall Thickness: 0.5mm to 5mm (optimum 1-3mm) for uniform sintering
Draft Angles: 0.5° to 2° for easy mold release
Radius: Minimum 0.2mm internal, 0.5mm external
Undercuts: Possible with side-actions or collapsible cores
Aspect Ratio: Maximum 4:1 for unsupported walls
Design Guidelines for MIM Electronics Components
Successful MIM component design for cnc electronics requires a different approach than traditional manufacturing methods. By following these guidelines, designers can maximize the benefits of MIM while avoiding potential pitfalls.
Optimize for Uniform Shrinkage
Design parts with uniform wall thickness to ensure consistent shrinkage during sintering. Variations in wall thickness can lead to warping or cracking. This is particularly important for electronic components where dimensional accuracy is critical for proper fit within assemblies.
Consider Sintering Shrinkage
MIM parts typically shrink 15-20% during sintering. Designers must account for this shrinkage when creating molds, especially for components that interface with other parts in cnc electronics assemblies. Computer-aided engineering tools can accurately predict and compensate for this shrinkage.
Incorporate Draft Angles
Include appropriate draft angles on all vertical surfaces to facilitate easy ejection from the mold. Even small draft angles (0.5°-2°) can significantly improve part quality and reduce mold wear, leading to more consistent production of electronic components.
Use Radii Instead of Sharp Corners
Replace sharp corners with radii wherever possible. This reduces stress concentrations in the molded part, improves mold filling, and extends mold life. For electronic components, rounded corners can also improve handling and reduce damage during assembly.
Design for Net Shape
Maximize the use of MIM's ability to produce net-shape or near-net-shape components to minimize secondary operations. This reduces production costs and improves part consistency – key factors in competitive cnc electronics manufacturing.
Consider Assembly Integration
Design MIM components with features that facilitate easy assembly with other electronic parts. This can include snap fits, locating features, and self-aligning geometries that reduce assembly time and improve product reliability.
Emerging Trends in MIM for Electronics
Innovations and developments shaping the future of Metal Injection Molding in cnc electronics manufacturing.
Advanced Material Development
Research into new alloy systems and composite materials is expanding MIM's capabilities in cnc electronics. Nanostructured materials, high-entropy alloys, and metal matrix composites are being developed to provide enhanced properties like improved conductivity, strength, and corrosion resistance for next-generation electronic devices.
These advanced materials are enabling MIM components to meet the increasingly demanding requirements of high-performance electronics, including 5G and 6G communication devices, advanced sensors, and high-power electronic systems.
Process Optimization Through AI & Machine Learning
Artificial intelligence and machine learning are being applied to optimize MIM processes, from feedstock formulation to sintering. These technologies analyze vast amounts of process data to identify optimal parameters, predict quality issues, and reduce production variability in cnc electronics manufacturing.
This data-driven approach is improving process stability, reducing scrap rates, and enabling more consistent production of high-precision electronic components, ultimately lowering costs and improving time-to-market.
Micro-MIM for Miniaturized Electronics
As electronic devices continue to shrink, micro-MIM technology is emerging as a critical manufacturing solution. This specialized form of MIM produces components with features as small as 50 microns, enabling the next generation of miniature cnc electronics.
Applications include micro-connectors, sensor components, and miniature structural parts for wearable devices, medical microelectronics, and IoT sensors where size reduction without performance compromise is essential.
Sustainability & Circular Economy
The electronics industry is increasingly focused on sustainability, and MIM is well-positioned to contribute through its high material efficiency and ability to process recycled metals. Developments in bio-based binders and energy-efficient sintering processes are further reducing MIM's environmental footprint in cnc electronics production.
Additionally, MIM's ability to produce components with longer service life and improved recyclability supports the circular economy initiatives gaining momentum across the electronics industry.
Growth Projections for MIM in Electronics
Projected growth of MIM technology adoption across various electronics sectors, highlighting the expanding role of MIM in cnc electronics manufacturing through 2030.
Frequently Asked Questions
What size limitations exist for MlM components in electronics?
MIM is particularly well-suited for small to medium-sized components, typically ranging from 0.1 to 50 grams in weight. For electronics applications, most MIM components fall in the 0.5 to 10 gram range. While larger components can be produced, they often require special consideration during sintering to ensure uniform density. The technology excels at producing the small, complex parts commonly found in cnc electronics, where precision and miniaturization are key requirements.
How does MlM compare to 3D metal printing for electronic components?
Both MIM and 3D metal printing (additive manufacturing) can produce complex metal components, but they serve different niches in cnc electronics manufacturing. MIM offers lower per-unit costs for medium to high volume production, better material properties, and higher production rates. 3D printing provides greater design flexibility for one-off or low-volume parts and enables geometries that may be challenging for MIM. Many manufacturers use both technologies, with MIM typically more cost-effective for production-scale cnc electronics components.
What surface finishes can be achieved with MlM components?
As-sintered MIM components typically have a surface roughness (Ra) of 1-3 μm. For electronic applications requiring smoother surfaces, additional processes can be employed, including vibratory finishing, tumbling, or light machining. MIM parts can also be plated with various metals (nickel, gold, silver, etc.) to improve conductivity, corrosion resistance, or solderability – critical properties for many cnc electronics components like connectors and contacts.
What is the typical lead time for MlM tooling and production?
Tooling for MIM typically takes 4-8 weeks to produce, depending on part complexity. This is comparable to plastic injection molding but longer than the lead times for simple machining setups. However, once tooling is complete, production runs can be scaled quickly, with typical lead times of 2-4 weeks for production orders. For cnc electronics manufacturers, this balance of tooling investment and production speed makes MIM ideal for products with medium to long production runs.
Can MlM components meet the strict cleanliness requirements of electronicsmanufacturing?
Yes, MIM components can be processed to meet the strict cleanliness requirements of electronics manufacturing. Specialized cleaning processes, including ultrasonic cleaning and high-purity solvent washing, can remove residual binder materials and contaminants. Additionally, MIM production can be conducted in controlled environments, including cleanrooms, to ensure that components meet the particulate and chemical purity standards required for sensitive cnc electronics applications like semiconductor equipment and medical devices.
How does MlM contribute to miniaturization in electronics?
MIM plays a crucial role in electronics miniaturization by enabling the production of small, complex components with tight tolerances that would be difficult or impossible to manufacture using traditional methods. The technology allows for intricate features, thin walls, and complex geometries in very small packages, supporting the ongoing trend toward smaller, more powerful electronic devices. In cnc electronics, MIM's ability to produce miniaturized connectors, sensors, and structural components helps reduce overall device size while maintaining or improving performance.
