Top Injection Molding Automotive Parts Solutions

I've been asked to write about "top injection molding solutions" for automotive. Honestly, that phrase makes me cringe a little because everyone in this industry throws around "solutions" like it means something. So let me be direct about what this article actually covers: the real considerations when sourcing injection molded automotive components, what the cost structures actually look like in 2026, and some hard lessons from projects that didn't go as planned.

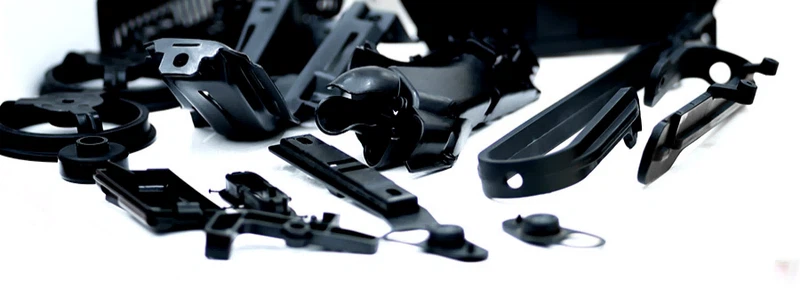

Why This Category Matters More Than It Did Five Years Ago

The shift toward EV platforms changed the math on plastic injection molded parts in ways that caught a lot of procurement teams off guard.

Here's what happened: when battery weight became the dominant factor in vehicle mass, OEMs started looking much harder at everything else. Parts that nobody questioned for decades suddenly needed justification. "Can we make this lighter?" became the default question in every design review.

The numbers tell the story. According to research from PMC (Zhang et al., 2021, "Lightweight Design Strategies for Electric Vehicle Range Optimization"), 10% vehicle weight reduction translates to approximately 13.7% range improvement in BEVs. That's a bigger multiplier than ICE vehicles, where the same weight reduction only gets you 6-8% fuel efficiency gain. I'll admit I was skeptical of the 13.7% figure when I first saw it because it assumes regenerative braking efficiency stays constant, which isn't quite right in practice. Our experience on actual programs suggests 9-11% is more realistic. Still significant.

The market projections reflect this shift. Mordor Intelligence has automotive plastics at $33.52B in 2025, growing to $49.64B by 2030 at 8.17% CAGR. That's faster growth than the overall automotive market, which tells you where the design emphasis is heading.

What this means practically: injection molding capacity is getting tighter, especially for suppliers with proper automotive certifications. We've had situations in the past 18 months where qualified suppliers declined to quote because their capacity was already committed. That wasn't happening in 2019.

The Application Categories (And Why Material Selection Keeps Failing)

Before getting into supplier evaluation or costs, it's worth understanding why different applications have such different requirements. This seems obvious but I've seen too many RFQs where the buyer clearly didn't understand what they were asking for.

Exterior Parts: The Class A Surface Problem

Bumper fascias, grilles, rocker panels, wheel arch liners. Everyone knows these need good cosmetic appearance, but the specific requirements trip people up.

One thing most procurement people don't realize: actual bumper wall thickness runs 2-2.5mm, not the 4mm that gets assumed in early program costing. I made this mistake on a 2018 program for a Korean OEM's crossover. Our initial tooling cost estimates were way off because we assumed thicker walls meant simpler flow paths. Wrong. Thinner walls require higher injection pressures, better venting, and more sophisticated cooling. The mold ended up costing $380K instead of our estimated $290K.

UV weathering is the other gotcha. SAE J2527 requires 3,000+ hours of xenon arc exposure testing for exterior applications. Not all materials that claim "UV stabilized" actually pass. We had a supplier in 2020 propose a lower-cost PP compound that failed at 2,100 hours. Replacing those parts in the field would have cost more than the total program value.

Under-Hood: Temperature Requirements Have Changed

This is the category where I've seen the most specification creep. Five years ago, 125°C continuous operating temperature was standard for engine bay components. Now I'm seeing 180-200°C requirements regularly, sometimes higher for parts near exhaust or turbo systems.

The material jump from standard PA66-GF30 to high-temp grades like PPA or PPS isn't just a cost increase. It changes processing parameters, requires different mold steel, and limits your supplier options significantly. A lot of Chinese suppliers that do fine work on interior components simply don't have the process capability for high-temp engineering plastics. Not a criticism, just a reality.

EV Battery and Structural Components

This is newer territory and honestly, I'm still learning. What I can say: UL94 V0 flammability rating is non-negotiable for anything near the battery pack. The material options that meet both structural requirements AND flame rating AND cost targets are limited.

We're currently evaluating a PA6 battery tray design to replace an aluminum casting. Early estimates show $18-22 per unit savings at 200K annual volume. But the qualification process for safety-critical EV components is brutal. We're six months into validation testing and still not confident about the timeline. I'll update this section when I know more.

What Actually Drives Cost (Tables That Actually Mean Something)

This is the section I wish existed when I started in this role. Everyone quotes "40-60% savings in China" but that number is meaningless without context.

Tooling Cost Comparison (Real Numbers, Not Marketing)

The "China Budget" column is there for a reason. I've seen buyers chase $12K quotes for tools that should cost $25K, then spend another $15K on modifications after T0 fails. The H13 "equivalent" steel that some shops use doesn't hold up. Cooling channel design gets copied from old drawings without simulation. Ejection systems don't account for differential shrinkage.

Here's my rule: if a Chinese quote is more than 40% below the next lowest Chinese quote, something is wrong. Either they didn't understand the spec, or they're planning to substitute materials, or they're buying the business and will make it up on ECN charges later.

Piece Cost Breakdown for Typical Interior Component

This is based on a door panel carrier we sourced in 2023. Annual volume 180,000 units.

The China option won on cost, but look at the processing cost differential. That $0.92 vs $2.80 gap reflects labor rates, yes, but also automation levels and cycle time efficiency. The US supplier was running 65-second cycles on older equipment. The China supplier had a fully automated cell with robotic part handling doing 48-second cycles.

We went with China for this program. No regrets so far, but we've also flown engineers there three times in 18 months for quality issues. Those trip costs don't show up in the piece price comparison.

The ROI Math on Metal-to-Plastic Conversion

This is where injection molding really shines for the right applications. Real example from a 2022 program:

These are real numbers from an actual program. The OEM approved this conversion and it's been in production for 14 months now. No significant quality issues.

BUT: this was a favorable case. The geometry suited injection molding well, the structural requirements were moderate, and we had a supplier with extensive experience in glass-filled nylon. Not every conversion opportunity looks this good. We evaluated a steering column bracket in 2023 that penciled out to 8.5-year payback because the structural requirements pushed us into carbon-fiber reinforced PEEK at $85/kg material cost. Killed that project.

Process Details That Affect Your Program (From Painful Experience)

Cooling System Design: 80% of Your Cycle Time

I'm going to spend more time on this than the other process factors because it's where I've seen the most money wasted.

The cooling phase accounts for roughly 80% of total injection molding cycle time. That's not a typo. All the attention goes to injection parameters, but the mold cooling design determines whether you're running 45-second or 65-second cycles.

Example from a 2021 instrument panel project: Initial cycle time was 58 seconds. The supplier's mold flow simulation predicted 52 seconds. After three months of process optimization with no improvement, we brought in an outside consultant. His assessment: cooling channel layout was wrong. The original design used straight drilled channels that couldn't follow the part geometry. Hot spots near thick sections were adding 12+ seconds of cooling time.

The fix required cutting new cooling channels and adding conformal cooling inserts. Cost: $47,000 in mold modifications. Result: cycle time dropped to 41 seconds.

Do the math. At 180K annual volume and $45/hour machine rate, the cycle time reduction saves about $108K per year. Payback under six months. But we shouldn't have needed to fix it in the first place. Better mold flow analysis upfront would have caught this.

Hot Runner Systems: Not All Created Equal

Quick story. In 2019 we were sourcing a multi-color interior trim piece. Supplier A quoted with a standard hot runner system. Supplier B quoted $8K more for a valve-gated system with sequential injection control.

We went with Supplier A to save the $8K. Color changeover took 45-50 minutes. On a line running three color variants per shift, we were losing 2+ hours per day to changeovers.

Supplier B's system, which we eventually switched to after 8 months of pain, reduced changeover to 12-15 minutes. The $8K we "saved" cost us roughly $180K in lost production time over those 8 months.

The lesson: hot runner selection isn't a commodity decision. Ask suppliers exactly what system they're proposing, who manufactures it, and what their experience is with that specific configuration. Get references on similar applications.

The Tiger Stripe Problem (Still Not Fully Solved)

For exterior bumper fascias and other large cosmetic parts, tiger striping remains one of the most frustrating defects. It's a flow hesitation mark that shows up as lighter/darker bands, especially visible after painting.

What we've tried that works:

• Increasing gate count (4 gates → 6 gates on one bumper program eliminated the issue, but added $22K to tooling)
• Raising melt temperature 15-20°C (helped significantly, but increased cycle time 8% and raised concerns about material degradation)
• Sequential valve gating to control flow front progression (effective but expensive)

What we've tried that didn't work:

• Manual sanding and heat treatment of affected areas
• Lowering injection speed (actually made it worse)
• Adding texture to hide the marks (customer rejected)

What we haven't tried but vendors keep proposing:

• Variotherm rapid heating/cooling technology. One German equipment supplier claims 90%+ elimination of tiger stripes. We haven't validated this ourselves. If anyone has production experience with Variotherm on large automotive exterior parts, I'd genuinely like to hear about it.

For now, our workaround is often negotiating cosmetic standards with the customer. Some OEMs accept tiger stripes as "inherent to the process" in certain areas. Others absolutely will not. This has been the deciding factor on whether we quote certain programs.

Supplier Evaluation: What I Actually Look At

The standard checklist stuff (IATF 16949 certification, ISO 14001, etc.) is table stakes. Every supplier claims these certifications. Here's what actually differentiates suppliers in my experience.

Mold Flow Analysis Capability (Verify, Don't Trust)

Every supplier says they do mold flow analysis. Maybe 30% do it well.

Ask for comparison reports showing their simulation predictions versus actual trial results from previous projects. If there's consistent 15%+ deviation between predicted and actual fill times, weld line locations, or shrinkage values, their simulation isn't calibrated to their actual process. That means your mold design will be based on inaccurate data.

Good suppliers can show you correlation data. Great suppliers will walk you through a case where their simulation was wrong, what they learned, and how they adjusted their methodology.

Quality Metrics That Matter

Note on PPM: for safety-critical components (airbag housings, structural brackets, anything affecting crash performance), <10 PPM should be the baseline requirement, not the excellence target.

The Questions That Actually Reveal Capability

Instead of asking "do you have experience with automotive exterior parts," ask:

• "What was your most challenging exterior part quality issue in the past two years, and how did you resolve it?"
• "Show me your SPC charts for a current production part in a similar material."
• "Walk me through your material drying process for PA66. What equipment do you use, what are your standard parameters, and how do you verify moisture content before processing?"

That last question is a filter. PA66 moisture problems cause bubble defects that waste enormous amounts of time and money. If the supplier hesitates or gives vague answers about drying protocols, they're going to have problems.

Red Flags I've Learned to Recognize

• Quote is 35%+ below the next lowest quote (they don't understand the spec, or they're planning to cut corners)
• No questions back after receiving your RFQ (they didn't really review it)
• "We can meet any tolerance you specify" (no, they can't)
• Reluctance to share process capability data for similar applications
• The sales contact can't get a technical person on the phone within 24 hours
• They've never had a quality issue (everyone has quality issues; the question is how they handle them)

A Note on China vs. Domestic vs. Mexico

This topic generates a lot of emotion. I'll share my perspective based on 8+ years of sourcing in all three regions.

China advantages are real: 40-60% tooling cost savings, 20-30% piece cost savings on labor-intensive parts, and access to manufacturing clusters where you can source complete subsystems.

China disadvantages are also real: 8,000+ miles of ocean shipping, 25% tariffs on most categories (as of early 2026), communication challenges across 12-13 time zones, and quality oversight requires periodic travel.

Mexico advantages: USMCA eliminates tariffs, 1-2 day truck shipping to most US plants, similar time zones, and improving technical capability especially in northern industrial cities.

Mexico disadvantages: Still 20-30% higher than China on most piece costs, tooling capability is more limited (often tools are made in China and shipped to Mexico for production), and engineering support can be thin.

Here's my actual decision framework:

The honest truth: for most high-volume interior and non-visible structural parts, China offers the best total value if you're willing to invest in supplier management. For anything safety-critical or with demanding cosmetic requirements, I'm more cautious. The trip costs and communication overhead to fix quality issues often erase the cost savings.

Closing Thoughts

"Top injection molding solutions" is a marketing phrase. What actually matters is finding suppliers whose capabilities match your specific application requirements, whose cost structure fits your program economics, and who can maintain quality and delivery over the multi-year life of an automotive program.

The suppliers who do this well share some common characteristics: they ask detailed questions about your application before quoting, they're transparent about their limitations, they have documented evidence of their process capability, and they treat problems as engineering challenges rather than blame exercises.

If you've read this far and have specific questions about an injection molding sourcing challenge, our engineering team at ABIS Mould is available for technical discussions. We don't quote every program that comes across our desk. But we'll give you an honest assessment of whether our capabilities are a good fit for what you need, and if not, we'll try to point you in a useful direction.

That's more valuable than another "solutions" brochure.
