How does the mold thickness correspond to the injection machine?
The relationship between mold thickness and injection machine is shown in the figure below.The corresponding relation can be accounted for.
Hmin H or less or less Hmax
Hmax - Hmin = l
Hmin in formula: minimum open distance of injection machine (mm);
H -- mold thickness (mm);
Hmax - maximum opening distance of injection machine (mm);
L -- adjustable length (mm) for injection screw.
How does the mold thickness correspond to the injection machine?

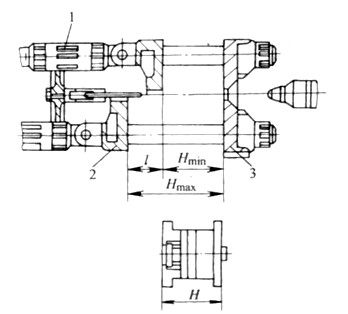

The opening distance of the injection machine.
1 - adjusting nut 2 - moving table 3 - fixed table.
