Big flat transparent products plastic injection mold and Molding

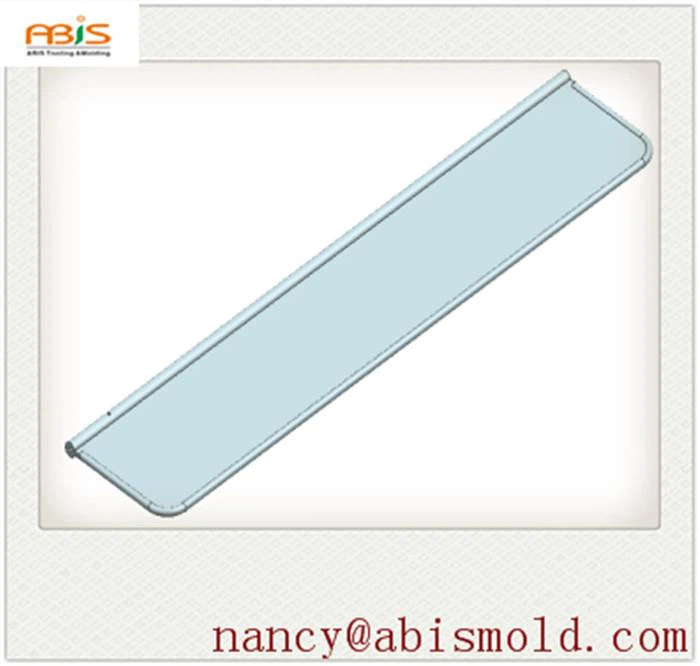

Part Name: | 30in visor |
Plastic Material: | pc |
Plastic Weight: | 678.3g |
Shrinkage: | 1.005 |
Mold Cavities: | 1*1 |
Mold Type: | 2 plate mold |
Gate Type: | hot runner with fun gate |
Surface finish: | ＳＰＩ-Ａ1 |
Cavity Steel: | S136 |
Part size : | 156.36X758.95X14.22 |

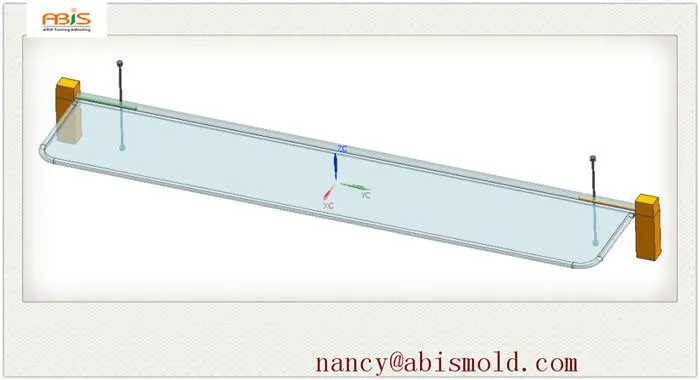

You can see have two inserts fixed at the end of two side. its also can called insert mold.

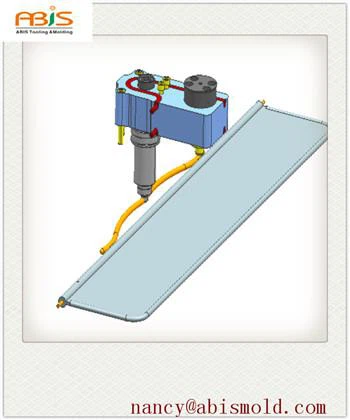

It's one product in this mold, so its have to make the hot runner off center 25.4mm.

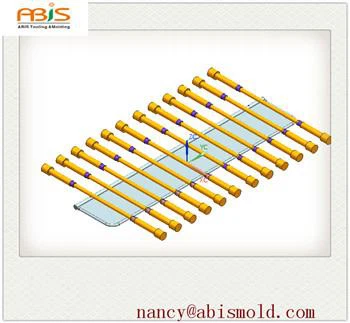

and its two fun gate, the cooling system is much more.

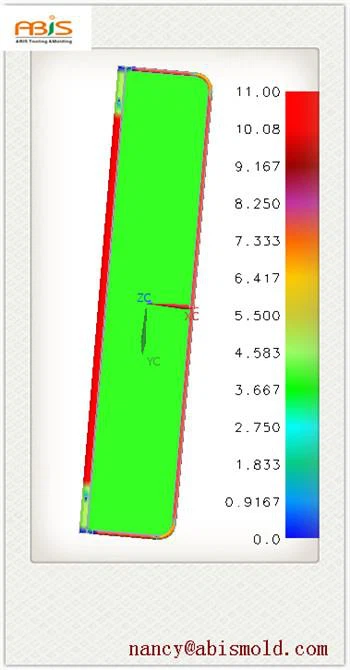

below moldflow shows the fun gate is good, and the product's wall thickness analysis shows
the thicknest is 11.0mm.

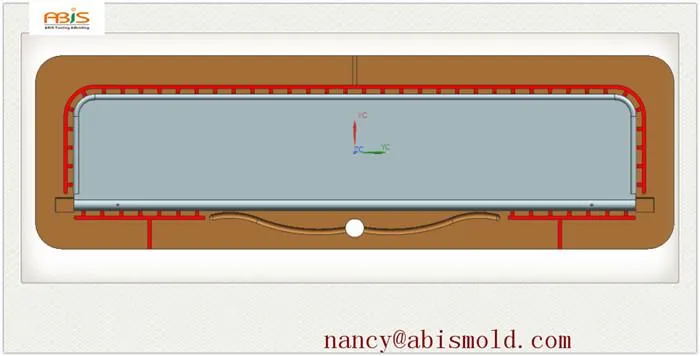

below picture can clearly see the mold layout, venting, gating, insert position.

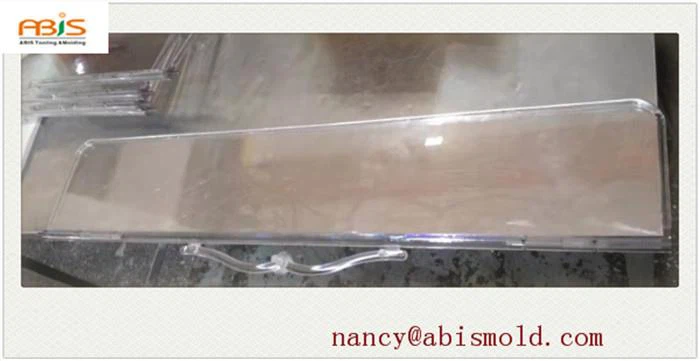

that is the molded product, transperant PC material. 450 Ton plastic injection machine.

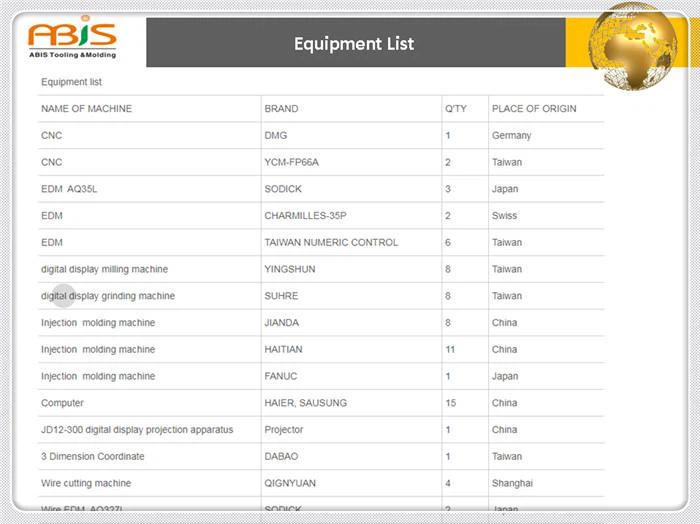

We have our own factory for building types of mold.

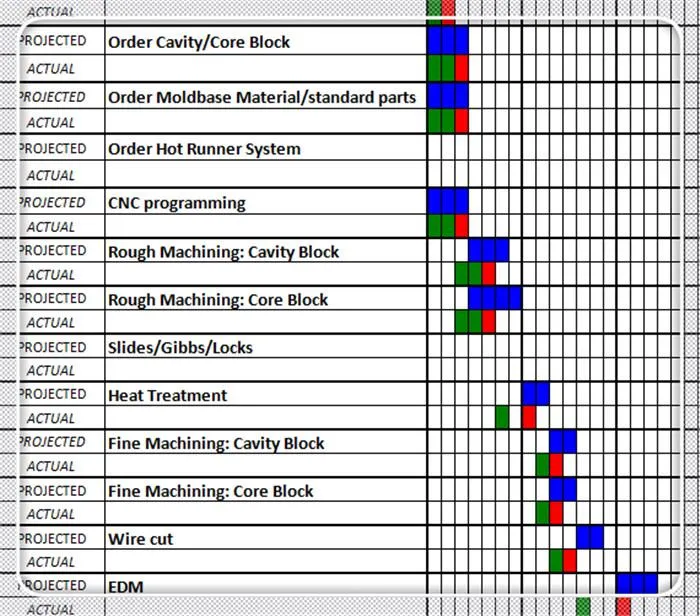

below is weekly report for new project send to customer each Friday.
This is Nancy here, I have 6 years experience as a mold designer and 3 years working as a project manager. Welcome to contact with me anytime:
